Lightroom: Can't expand crop size when displayed crop angle is 0.00
I reproduced the initially described issue!

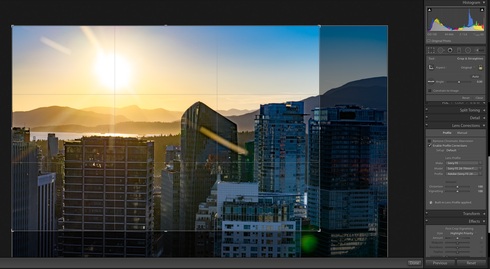

Can't expand the right bottom corner. As you see the angle is 0.00. What I did for that? I rotated the image and then rotated it back to 0.00. Maybe it's something like 0.000000000000001 and it doesn't work. But user see that it's 0.00 and it should work!
Note: This conversation was created from a reply on: Can't expand crop area in Lightroom.
Can't expand the right bottom corner. As you see the angle is 0.00. What I did for that? I rotated the image and then rotated it back to 0.00. Maybe it's something like 0.000000000000001 and it doesn't work. But user see that it's 0.00 and it should work!
Note: This conversation was created from a reply on: Can't expand crop area in Lightroom.
Responses
John_R_Ellis
Champion
•
5.5K Messages
•
97.3K Points
4 years ago
You've precisely identified the bug: After rotating, LR has set the internal setting CropAngle to a value less than 0.005. The angle displays as 0.00, but the non-zero internal angle prevents you from fully adjusting the size of the crop.
Here's a screen capture illustrating the bug: https://dl.dropboxusercontent.com/u/21811200/crop-bug.2017.06.30.mov. At the end, I show that the internal CropAngle value is 0.001337, which gets rounded to 0.00 in the Crop tool.
The workaround is simple, once you know it: Either double-click on the slider pointer, or click on the numeric angle and type 0 followed by return.
Note: This conversation was created from a reply on: Can't expand crop area in Lightroom.
0
0
John_R_Ellis
Champion
•
5.5K Messages
•
97.3K Points
4 years ago
if math.abs (cropAngle) < 0.005 then cropAngle = 0 end
This provides a form of "gravity" with the 0 angle.
